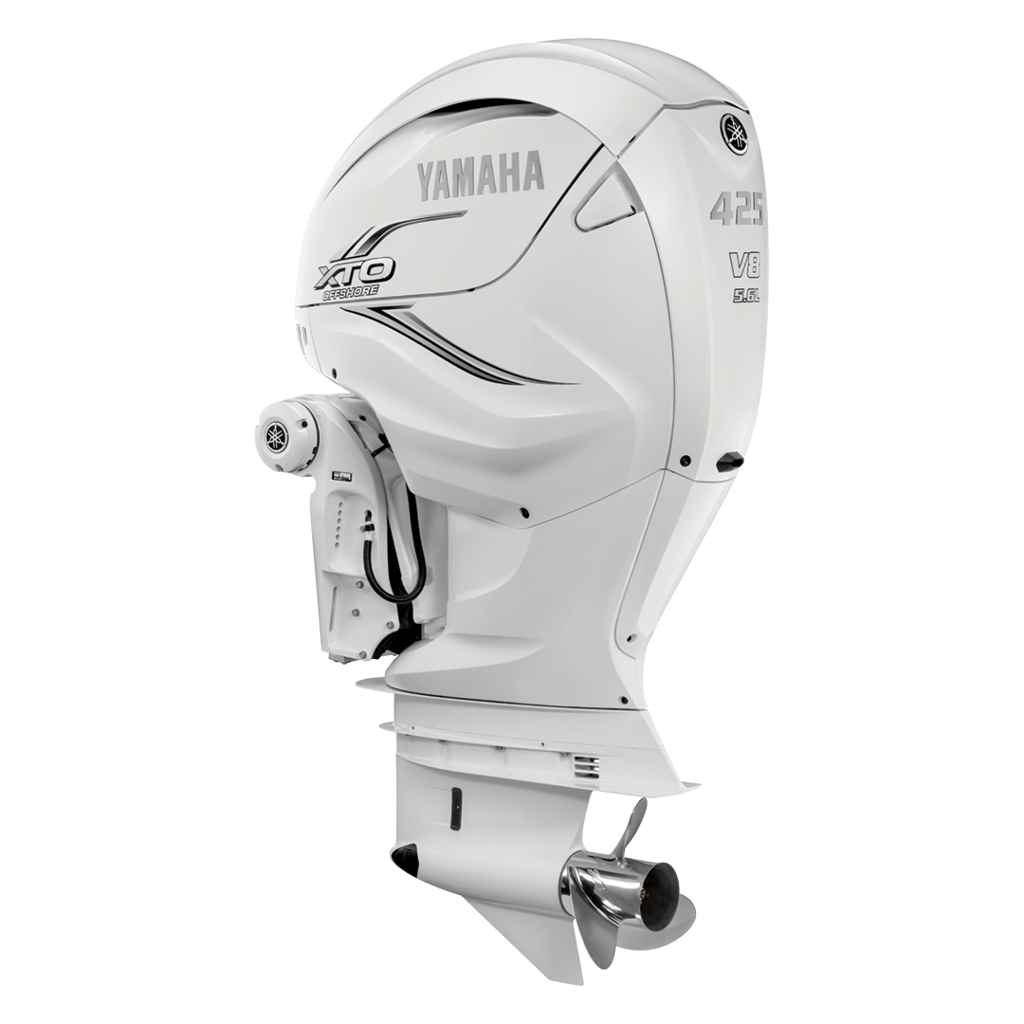

Yamaha XTO Offshore 425 HP Outboard Motor
$40,480.00
Yamaha XTO 425 for sale, a 5.6L V8 DOHC 32-valve offshore outboard delivering 425 HP at 5,500 RPM at the propeller shaft, with direct injection fuel induction (up to 2900 PSI), integrated electric steering, and available in 25″, 30″, or 35″ shaft lengths. Backed by Yamaha’s limited warranty program.
Yamaha XTO 425 for sale, a 5.6L V8 offshore outboard engineered for serious offshore power, delivering 425 HP at 5,500 RPM at the propeller shaft.
Yamaha XTO 425 Engine Specifications
This engine is a V8, DOHC, 32-valve design (4 valves per cylinder) with 5.6L displacement and a bore x stroke of 96 x 96 mm (3.78 x 3.78 in). It uses direct injection fuel induction rated up to 2900 PSI, a compression ratio of 12.2:1, and runs on 89 octane recommended fuel with a maximum ethanol blend of 10%. Full throttle RPM range is 5,000–6,000 RPM, and the engine carries a C.A.R.B. 3-Star emissions rating.
Yamaha XTO 425 Electrical, Ignition, and Lubrication
Ignition is handled by a TCI microcomputer system with ILMAR7E-9 iridium spark plugs, and starting is electric with power trim and tilt (PTT). The alternator delivers 100 amp gross output at wide-open throttle. Lubrication is a wet sump system using Yamalube 4M recommended engine oil, with an oil capacity of 7.8L / 8.2 quarts or 7.5L / 7.9 quarts depending on configuration. Cooling is thermostatically controlled, and recommended fuel filtration is a Yamaha 10-micron fuel/water separating filter (external).
Yamaha XTO 425 Shaft, Steering, and Mounting
The XTO 425 is available in 25″, 30″, or 35″ shaft lengths, with a gear ratio of 1.79 (25/14) and forward-neutral-reverse gear shift. Steering is integrated with electric actuation, offering a maximum steering angle of 31° from center in either direction. Degree of tilt ranges from -4° through +73°, degree of trim from -4° through +16°, and mounting centers measure 28.5 inches. Exhaust routes through the propeller except in reverse under 2500 RPM.
| Specification | Detail |
|---|---|
| Weight | 432 kg (952 lbs) / 443 kg (977 lbs) / 453 kg (999 lbs) |
| Full throttle RPM range | 5000–6000 RPM |
| Fuel induction system | Direct Injection, up to 2900 PSI |
| Recommended engine oil | Yamalube 4M |
| Engine type | V8, DOHC, 32 valves, 4 valves per cylinder |
| Displacement | 5.6L |
| Bore x stroke | 96 x 96 mm (3.78 x 3.78 in) |
| Prop shaft horsepower | 425 HP at 5500 RPM |
| Alternator output at W.O.T. | 100 Amp gross, max |
| Compression ratio | 12.2:1 |
| Recommended fuel | Octane 89 |
| Recommended fuel filtration | Yamaha 10-micron fuel/water separating filter (external) |
| C.A.R.B. rating | 3-Star |
| Exhaust | Through propeller (except in reverse under 2500 RPM) |
| Intake | 32-valve |
| Ignition | TCI microcomputer |
| Spark plug | ILMAR7E-9 / Iridium |
| Starting system | Electric with PTT |
| Lubrication | Wet sump |
| Engine oil capacity | 7.8L / 8.2 quarts or 7.5L / 7.9 quarts |
| Recommended cooling | Thermostatic control |
| Ethanol blend limit | 10% maximum |
| Gear ratio | 1.79 (25/14) |
| Gear shift | Forward, Neutral, Reverse |
| Shaft length | 25″ – 30″ – 35″ |
| Degree of tilt | -4° through +73° |
| Degree of trim | -4° through +16° |
| Mounting centers | 28.5″ |
| Steering | Integrated, electric actuation |
| Steering angle (maximum) | 31° from center, either direction |
| Warranty | Limited 5-Year Pleasure, 3-Year Government, 1-Year Commercial |
Contact us today to secure this Yamaha XTO 425, backed by Yamaha’s limited multi-tier warranty and available in three shaft-length configurations for offshore repower.
