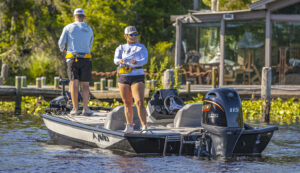

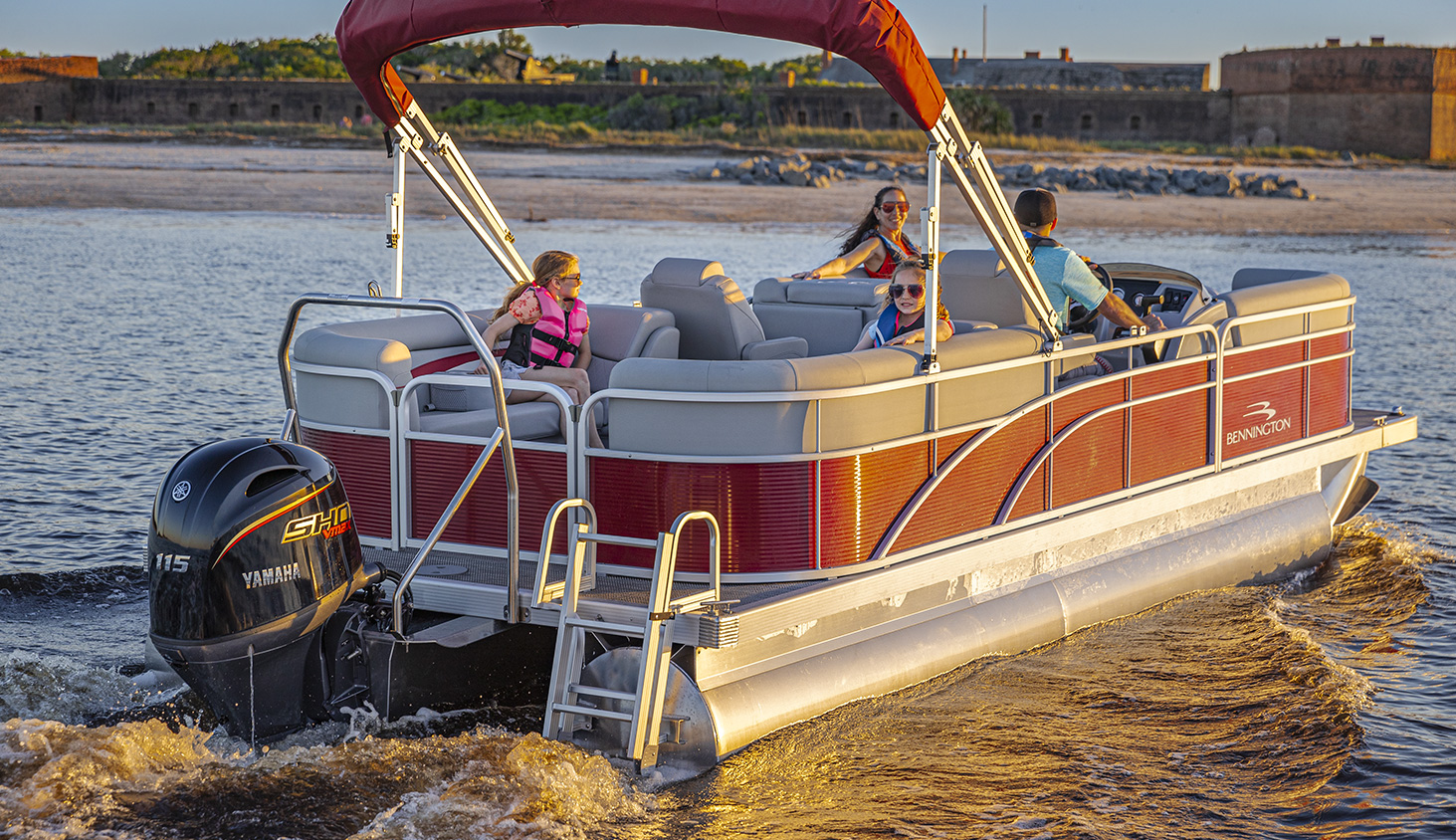

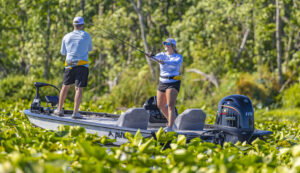

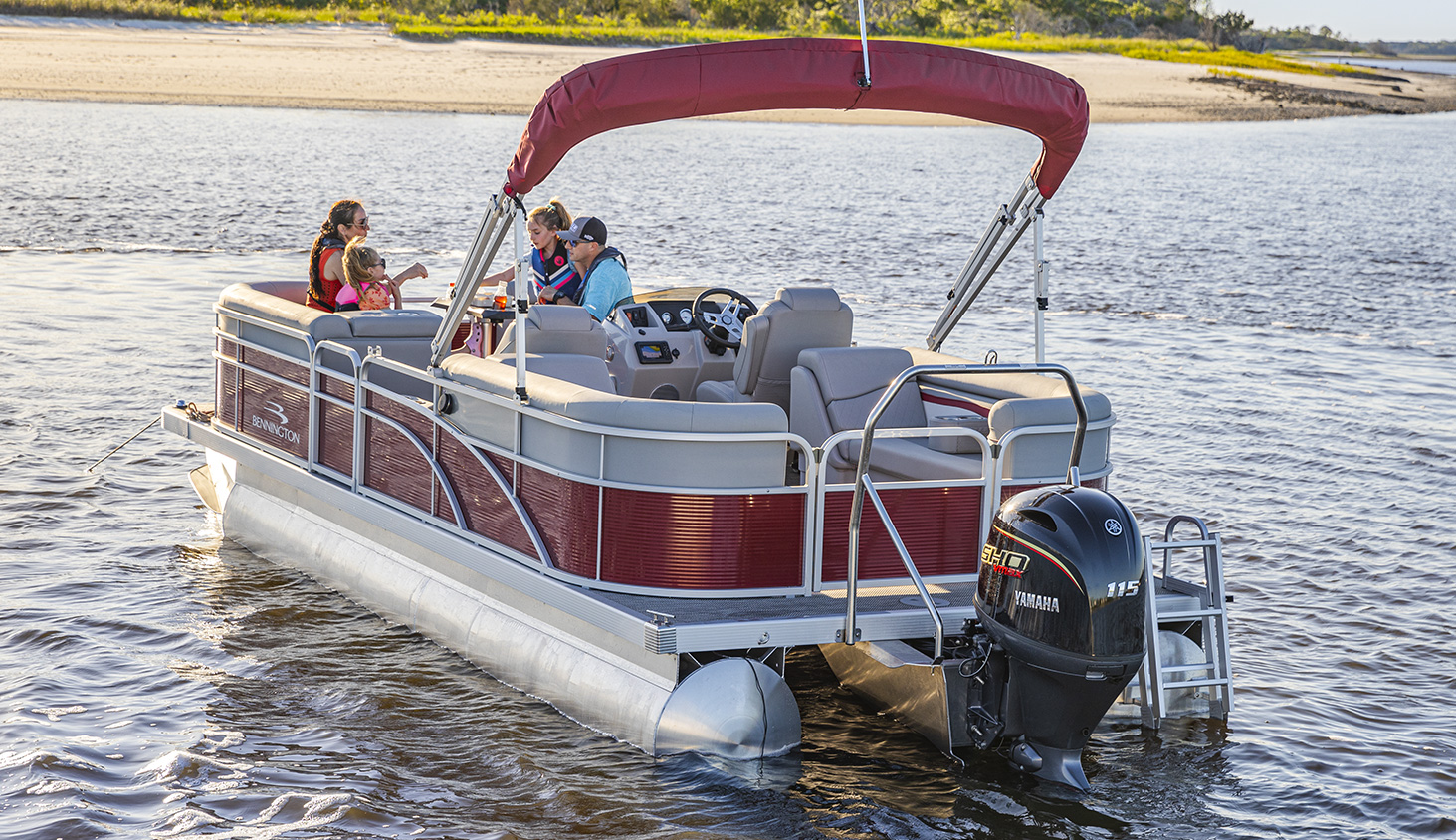

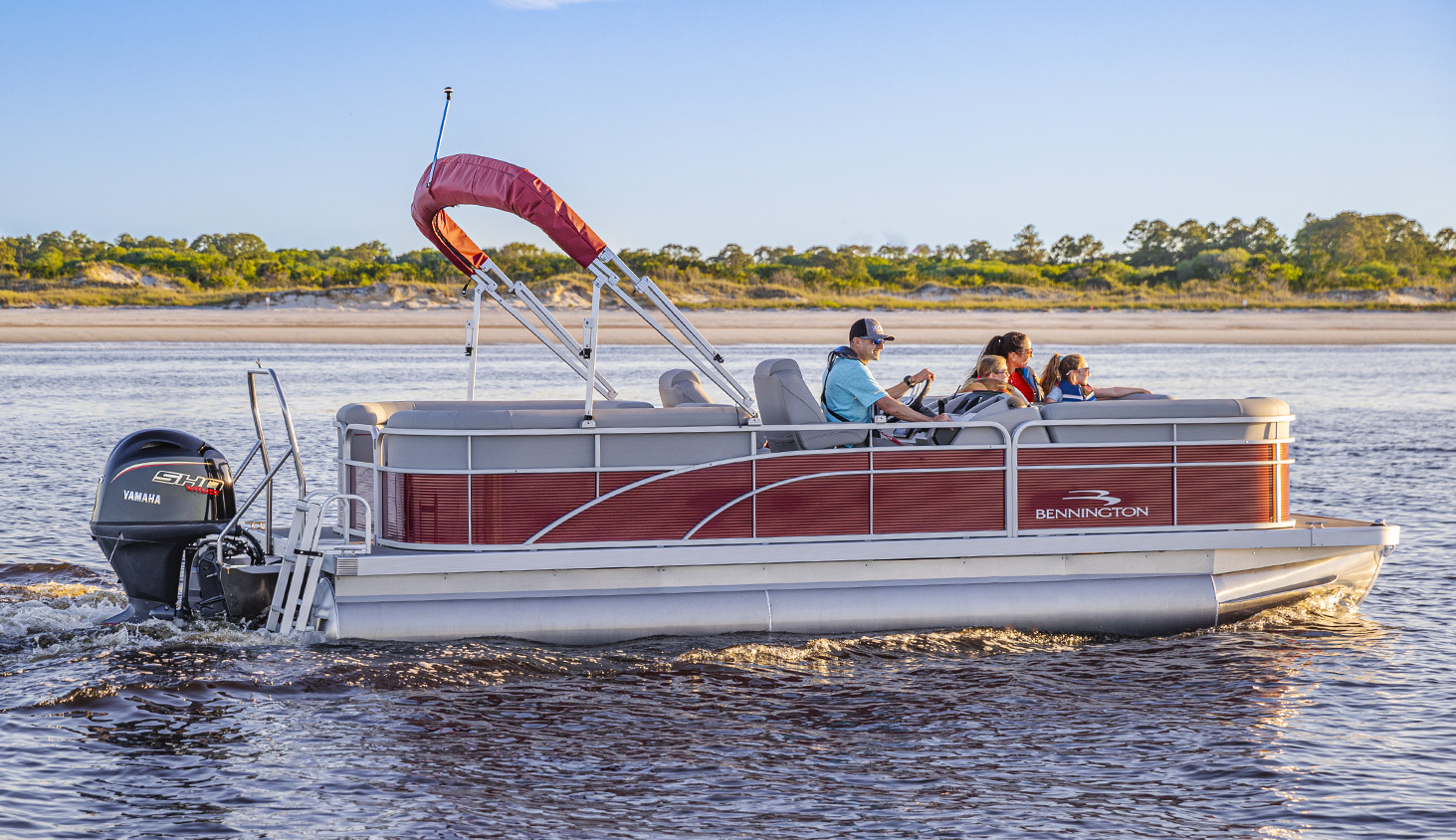

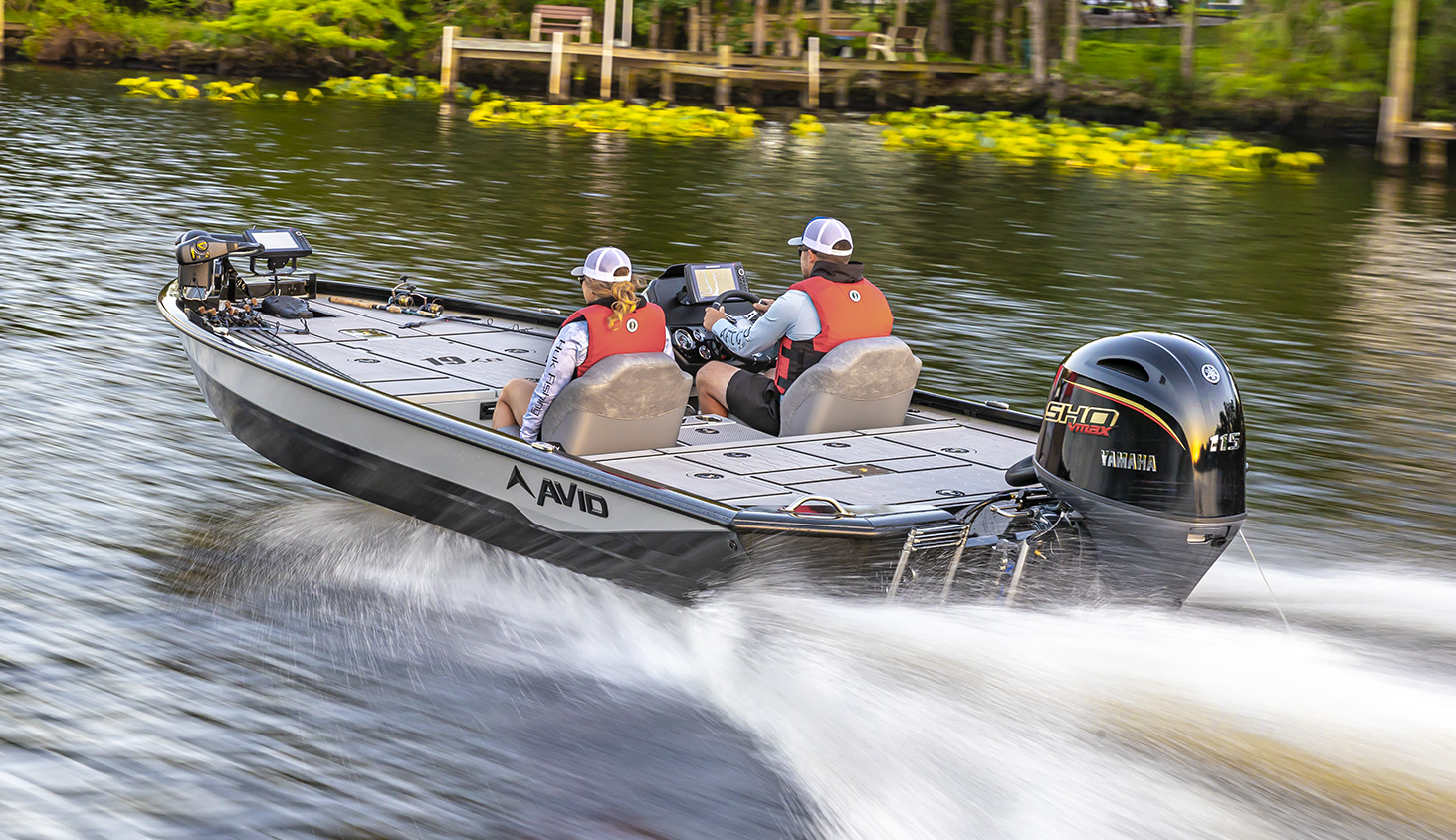

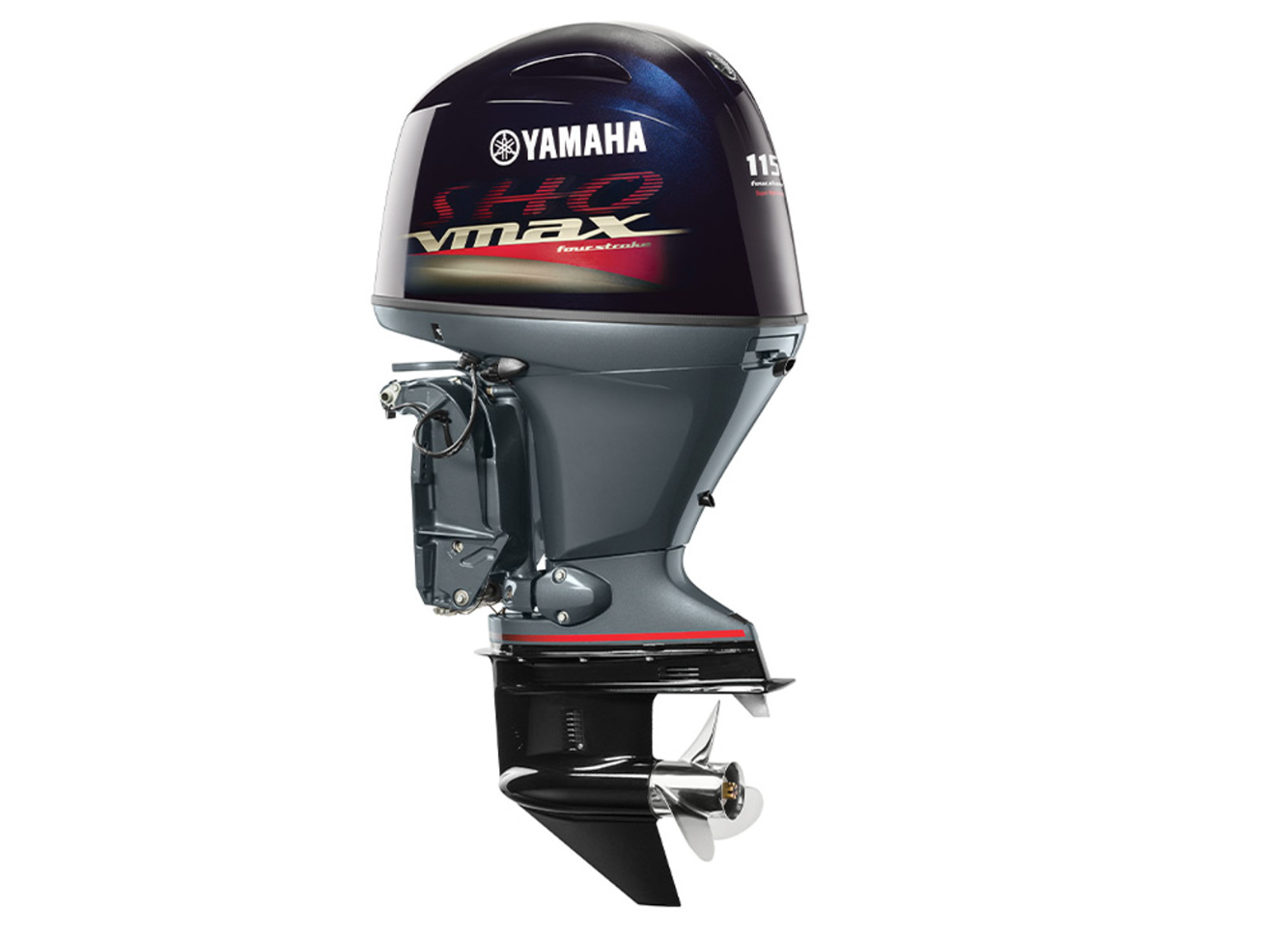

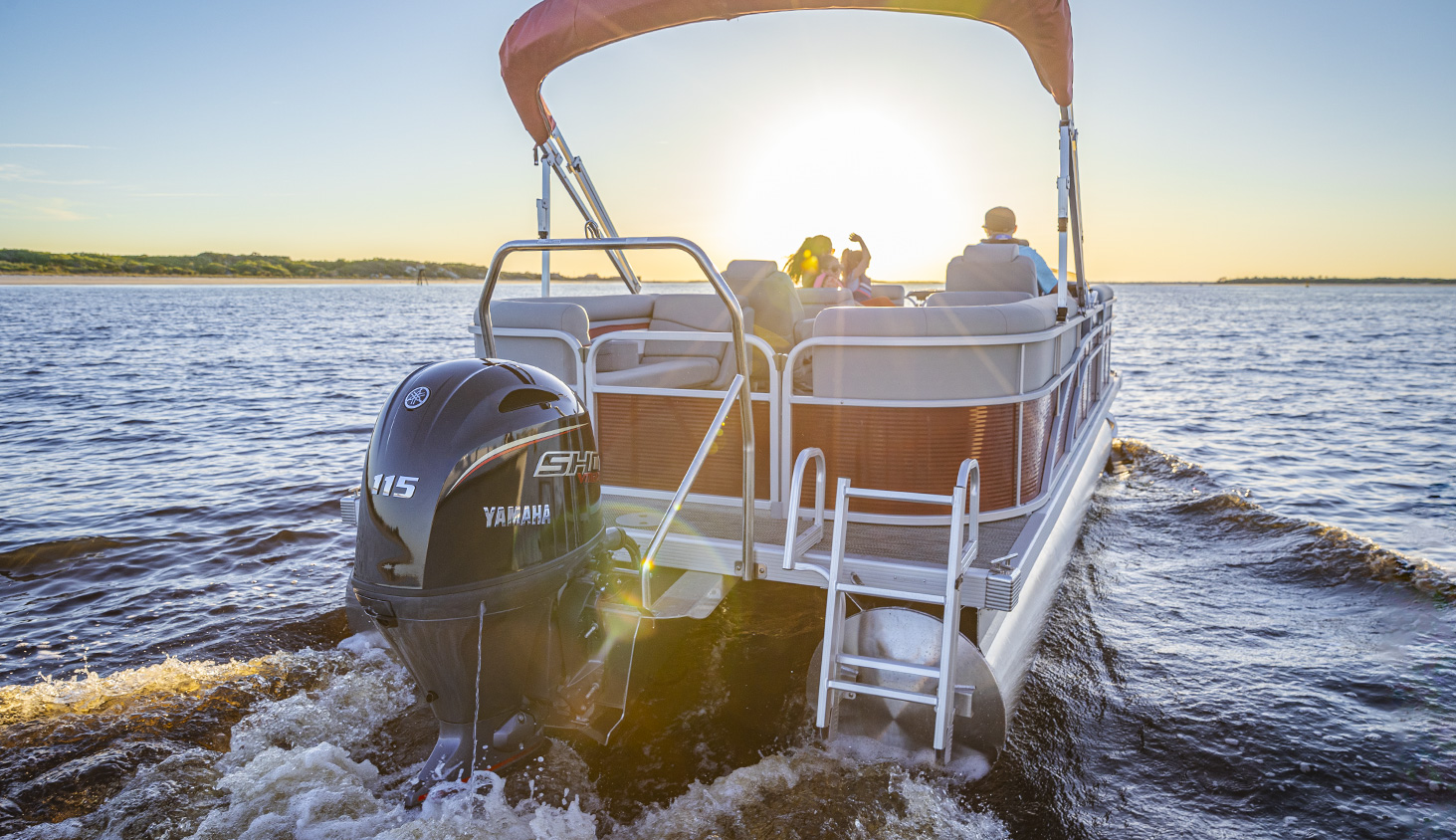

Yamaha In-Line Four V MAX SHO 115 Outboard Motor
$11,000.00
Yamaha VF115 for sale, an inline four-cylinder V MAX SHO outboard delivering 115 HP at 5,500 RPM at the propeller shaft, with a 1.8L displacement, EFI fuel induction, and a 20″ or 25″ shaft. Backed by Yamaha’s limited warranty program.
Yamaha VF115 for sale, an inline four V MAX SHO outboard engineered for high-output performance, delivering 115 HP at 5,500 RPM at the propeller shaft.
Yamaha VF115 Engine Specifications
This engine is an Inline 4 design with 1.8L displacement and a bore x stroke of 81 x 88.9mm (3.19 x 3.5in). It uses Electronic Fuel Injection (EFI), a compression ratio of 10.0:1, and runs on 87 octane recommended fuel with a maximum ethanol blend of 10%. Full throttle RPM range is 5,300–6,300 RPM, intake is 16-valve, and the engine carries a C.A.R.B. 3-Star emissions rating.
Yamaha VF115 Electrical, Ignition, and Lubrication
Ignition is handled by a TCI microcomputer system with an LKR6E spark plug, and starting is electric. The alternator delivers 35 amp output at wide-open throttle. Lubrication is a wet sump system using Yamalube 4M recommended engine oil, with an oil capacity of 3.2L / 3.0L. Cooling is thermostatically controlled, and recommended fuel filtration is a Yamaha 10-micron fuel/water separating filter (external).
Yamaha VF115 Shaft, Steering, and Mounting
The VF115 is available in 20″ or 25″ shaft lengths, with mechanical remote steering, a gear ratio of 2.15:1, and forward-neutral-reverse gear shift. Maximum steering angle is 35° from center in either direction. Degree of tilt is 70°, and degree of trim ranges from -4° through +16°. Exhaust routes through the propeller, and total weight ranges from 171 kg (377 lbs) to 175 kg (386 lbs).
| Specification | Detail |
|---|---|
| Weight | 171 kg (377 lbs) – 175 kg (386 lbs) |
| Full throttle RPM range | 5300–6300 RPM |
| Fuel induction system | EFI |
| Recommended engine oil | Yamalube 4M |
| Engine type | Inline 4 |
| Displacement | 1.8L |
| Bore x stroke | 81 x 88.9mm (3.19 x 3.5in) |
| Prop shaft horsepower | 115 HP at 5500 RPM |
| Alternator output at W.O.T. | 35 Amp |
| Compression ratio | 10.0:1 |
| Recommended fuel | Octane 87 |
| Recommended fuel filtration | Yamaha 10-micron fuel/water separating filter (external) |
| C.A.R.B. rating | 3-Star |
| Exhaust | Through propeller |
| Intake | 16-valve |
| Ignition | TCI microcomputer |
| Spark plug | LKR6E |
| Starting system | Electric |
| Lubrication | Wet sump |
| Engine oil capacity | 3.2L / 3.0L |
| Recommended cooling | Thermostatic control |
| Ethanol blend limit | 10% maximum |
| Gear ratio | 2.15:1 |
| Gear shift | Forward, Neutral, Reverse |
| Shaft length | 20″ – 25″ |
| Degree of tilt | 70° |
| Degree of trim | -4° through +16° |
| Mounting centers | N/A |
| Steering | Mechanical Remote |
| Steering angle (maximum) | 35° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
Contact us today to secure this Yamaha VF115 V MAX SHO, backed by Yamaha’s limited multi-tier warranty.
