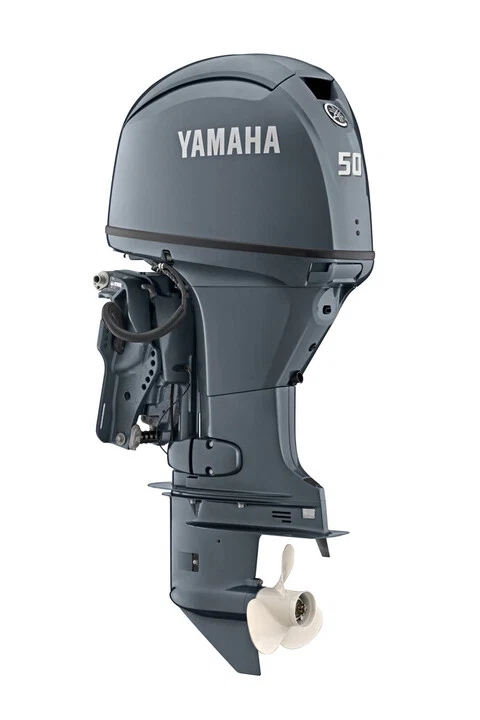

Yamaha 1-Liter Midrange F50 Outboard Motor
$8,122.00
Yamaha F50 for sale, a 1.0L inline-four midrange outboard at the propeller shaft, with EFI fuel induction, electric start, and a 20″ shaft. Backed by Yamaha’s limited warranty program.
Yamaha F50 for sale, a 1-liter midrange outboard engineered for reliable performance at the propeller shaft.
Yamaha F50 Engine Specifications
This engine is an inline four-cylinder (i4) design with 1.0L displacement and a bore x stroke of 65 x 75mm (2.56 x 2.95 in). It uses Electronic Fuel Injection (EFI), a compression ratio of 9.5:1, and runs on 87 octane recommended fuel with a maximum ethanol blend of 10%. Full throttle RPM range is 5,000–6,000 RPM, intake is 8-valve, and the engine carries a C.A.R.B. 3-Star emissions rating.
Yamaha F50 Electrical, Ignition, and Lubrication
Ignition is handled by a TCI microcomputer system with a DPR6EB-9 spark plug, and starting is electric. The alternator delivers 16 amp output at wide-open throttle. Lubrication is a wet sump system using Yamalube 4M recommended engine oil, with an oil capacity of 2.1L / 1.9L. Cooling is thermostatically controlled, and recommended fuel filtration is a Yamaha 10-micron fuel/water separating filter (external).
Yamaha F50 Shaft and Mounting
This outboard is built with a 20-inch shaft, a gear ratio of 1.85:1, and forward-neutral-reverse gear shift. Maximum steering angle is 40° from center in either direction. Degree of tilt is 69°, and degree of trim ranges from -4° through +16°. Exhaust routes through the propeller, and total weight is 112 kg (247 lbs).
| Specification | Detail |
|---|---|
| Weight | 112 kg (247 lbs) |
| Full throttle RPM range | 5000–6000 RPM |
| Fuel induction system | EFI |
| Recommended engine oil | Yamalube 4M |
| Engine type | Inline 4 (i4) |
| Displacement | 1.0L |
| Bore x stroke | 65 x 75mm (2.56 x 2.95 in) |
| Prop shaft horsepower | 60 HP at 5500 RPM (as stated in source; see flag below) |
| Alternator output at W.O.T. | 16 Amp |
| Compression ratio | 9.5:1 |
| Recommended fuel | Octane 87 |
| Recommended fuel filtration | Yamaha 10-micron fuel/water separating filter (external) |
| C.A.R.B. rating | 3-Star |
| Exhaust | Through propeller |
| Intake | 8-valve |
| Ignition | TCI microcomputer |
| Spark plug | DPR6EB-9 |
| Starting system | Electric |
| Lubrication | Wet sump |
| Engine oil capacity | 2.1L / 1.9L |
| Recommended cooling | Thermostatic control |
| Ethanol blend limit | 10% maximum |
| Gear ratio | 1.85:1 |
| Gear shift | Forward, Neutral, Reverse |
| Shaft length | 20″ |
| Degree of tilt | 69° |
| Degree of trim | -4° through +16° |
| Mounting centers | N/A |
| Steering angle (maximum) | 40° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
Contact us today to secure this Yamaha F50, backed by Yamaha’s limited multi-tier warranty.
