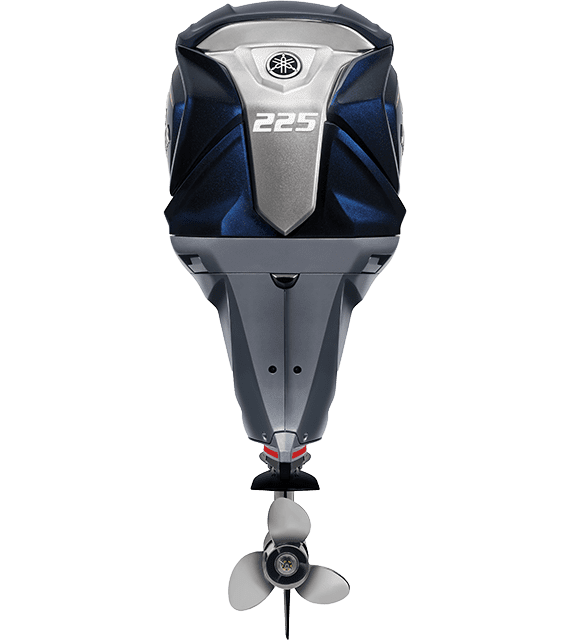

Yamaha V6 V MAX SHO 225 Outboard Motor
$20,064.00
Yamaha VF225 for sale, a V6 V MAX SHO outboard delivering 225 HP at 5,500 RPM at the propeller shaft, with a 4.2L displacement, EFI fuel induction, and a 20″ shaft. Backed by Yamaha’s limited warranty program.
Yamaha VF225 for sale, a V6 V MAX SHO outboard engineered for high-output performance, delivering 225 HP at 5,500 RPM at the propeller shaft.
Yamaha VF225 Engine Specifications
This engine is a V6 design with 4.2L displacement and a bore x stroke of 96 x 96mm (3.78 x 3.78 in). It uses Electronic Fuel Injection (EFI), a compression ratio of 10.3:1, and runs on 89 octane recommended fuel with a maximum ethanol blend of 10%. Full throttle RPM range is 5,000–6,000 RPM, intake is 24-valve, and the engine carries a C.A.R.B. 3-Star emissions rating.
Yamaha VF225 Electrical, Ignition, and Lubrication
Ignition is handled by a TCI microcomputer system with an LFR6A-11 spark plug, and starting is electric. The alternator delivers 70 amp output at wide-open throttle. Lubrication is a wet sump system using Yamalube 4M recommended engine oil, with an oil capacity of 6.7L / 6.4L. Cooling is thermostatically controlled, and recommended fuel filtration is a Yamaha 10-micron fuel/water separating filter (external).
Yamaha VF225 Shaft and Mounting
This outboard is built with a 20-inch shaft, a gear ratio of 1.75:1, and forward-neutral-reverse gear shift. Maximum steering angle is 35° from center in either direction. Degree of tilt is 66°, and degree of trim ranges from -4° through +16°. Exhaust routes through the propeller, and total weight is 240 kg (529 lbs).
| Specification | Detail |
|---|---|
| Weight | 240 kg (529 lbs) |
| Full throttle RPM range | 5000–6000 RPM |
| Fuel induction system | EFI |
| Recommended engine oil | Yamalube 4M |
| Engine type | V6 |
| Displacement | 4.2L |
| Bore x stroke | 96 x 96mm (3.78 x 3.78 in) |
| Prop shaft horsepower | 225 HP at 5500 RPM |
| Alternator output at W.O.T. | 70 Amp |
| Compression ratio | 10.3:1 |
| Recommended fuel | Octane 89 |
| Recommended fuel filtration | Yamaha 10-micron fuel/water separating filter (external) |
| C.A.R.B. rating | 3-Star |
| Exhaust | Through propeller |
| Intake | 24-valve |
| Ignition | TCI microcomputer |
| Spark plug | LFR6A-11 |
| Starting system | Electric |
| Lubrication | Wet sump |
| Engine oil capacity | 6.7L / 6.4L |
| Recommended cooling | Thermostatic control |
| Ethanol blend limit | 10% maximum |
| Gear ratio | 1.75:1 |
| Gear shift | Forward, Neutral, Reverse |
| Shaft length | 20″ |
| Degree of tilt | 66° |
| Degree of trim | -4° through +16° |
| Mounting centers | N/A |
| Steering angle (maximum) | 35° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
Contact us today to secure this Yamaha VF225 V MAX SHO, backed by Yamaha’s limited multi-tier warranty.
