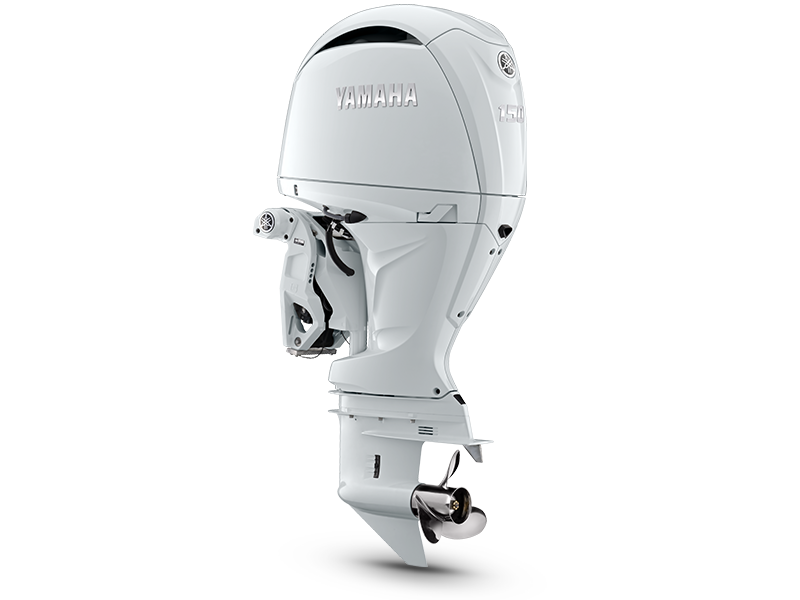

Yamaha In-Line Four F150 Outboard Motor
$14,520.00
Yamaha F150 for sale, an inline four-cylinder outboard delivering 150 HP at 5,500 RPM at the propeller shaft, with EFI fuel induction, available in Mechanical (2.7L) or DEC (2.8L) configurations, and a 20″ or 25″ shaft length. Backed by Yamaha’s limited warranty program.
Yamaha F150 for sale, an inline four-cylinder outboard engineered for reliable performance, delivering 150 HP at 5,500 RPM at the propeller shaft.
Yamaha F150 Engine Specifications
This engine is an Inline 4 design available in two configurations: Mechanical, with 2.7L displacement, a bore x stroke of 94 x 96.2mm (3.70 x 3.79in), a 9.0:1 compression ratio, and 87 octane recommended fuel; or DEC (Digital Electronic Control), with 2.8L displacement, a bore x stroke of 96 x 96.2mm (3.78 x 3.79in), a 10.3:1 compression ratio, and 89 octane recommended fuel. Both use EFI fuel induction, a maximum ethanol blend of 10%, a full throttle RPM range of 5,000–6,000 RPM, 16-valve intake, and carry a C.A.R.B. 3-Star emissions rating.
Yamaha F150 Electrical, Ignition, and Lubrication
Ignition is handled by a TCI microcomputer system with an NGK-LFR6A-11 (or LFR5A-11) spark plug, and starting is electric. The alternator delivers 35 amp (Mechanical) or 50 amp (DEC) output at wide-open throttle. Lubrication is a wet sump system using Yamalube 4M recommended engine oil, with an oil capacity of 4.5L / 4.3L. Cooling is thermostatically controlled, and recommended fuel filtration is a Yamaha 10-micron fuel/water separating filter (external).
Yamaha F150 Shaft, Steering, and Mounting
The F150 is available in 20″ or 25″ shaft lengths, with a gear ratio of 2.00:1 and forward-neutral-reverse (F-N-R) gear shift. Maximum steering angle is 30° from center in either direction. Degree of tilt is 70°, degree of trim ranges from -4° through +16°, and mounting centers measure 26 inches. Exhaust routes through the propeller. Weight at 20″ is 231 kg (509 lbs) for Mechanical or 237 kg (522 lbs) for DEC.
| Specification | Detail |
|---|---|
| Weight | 20″ Mechanical: 231 kg (509 lbs) / 20″ DEC: 237 kg (522 lbs) |
| Full throttle RPM range | 5000–6000 RPM |
| Fuel induction system | EFI |
| Recommended engine oil | Yamalube 4M |
| Engine type | Inline 4 |
| Displacement | 2.7L (Mechanical) / 2.8L (DEC) |
| Bore x stroke | 94 x 96.2mm (3.70 x 3.79in) / 96 x 96.2mm (3.78 x 3.79in) |
| Prop shaft horsepower | 150 HP at 5500 RPM |
| Alternator output at W.O.T. | 35 / 50 Amp |
| Compression ratio | 9.0:1 / 10.3:1 |
| Recommended fuel | Octane 87 / Octane 89 |
| Recommended fuel filtration | Yamaha 10-micron fuel/water separating filter (external) |
| C.A.R.B. rating | 3-Star |
| Exhaust | Through propeller |
| Intake | 16-valve |
| Ignition | TCI microcomputer |
| Spark plug | NGK-LFR6A-11 / LFR5A-11 |
| Starting system | Electric |
| Lubrication | Wet sump |
| Engine oil capacity | 4.5L / 4.3L |
| Recommended cooling | Thermostatic control |
| Ethanol blend limit | 10% maximum |
| Gear ratio | 2.00:1 |
| Gear shift | Forward, Neutral, Reverse (F-N-R) |
| Shaft length | 20″ / 25″ |
| Degree of tilt | 70° |
| Degree of trim | -4° through +16° |
| Mounting centers | 26″ |
| Steering angle (maximum) | 30° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 1-Year Commercial |
Contact us today to secure this Yamaha F150, available in Mechanical or DEC configurations and backed by Yamaha’s limited warranty.
