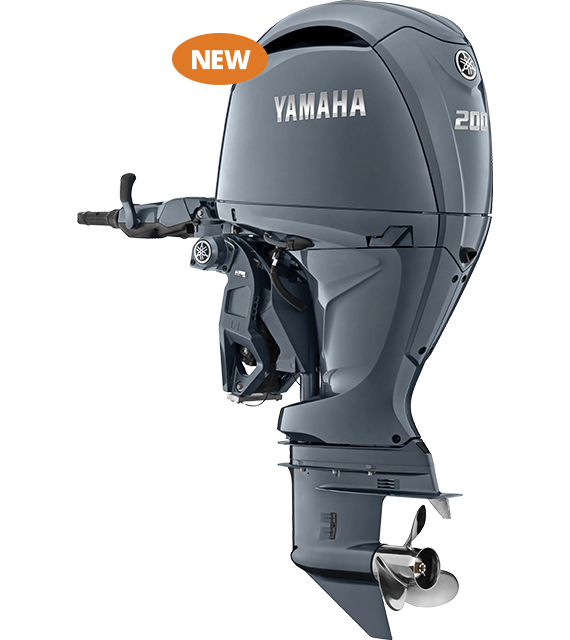

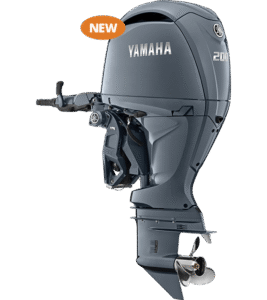

Yamaha Power Assisted Tiller 2.8L F200 Outboard Motor
$18,480.00
Yamaha F200 tiller for sale, an inline four-cylinder 2.8L outboard delivering 200 HP at 5,500 RPM at the propeller shaft, with EFI fuel induction, power-assisted tiller handle steering, and a 25″ shaft. Backed by Yamaha’s limited warranty program.
Yamaha F200 tiller for sale, an inline four-cylinder outboard engineered for reliable performance, delivering 200 HP at 5,500 RPM at the propeller shaft with power-assisted tiller handle steering.
Yamaha F200 Tiller Engine Specifications
This engine is an Inline 4 design with 2.8L displacement and a bore x stroke of 96 x 96.2mm (3.78 x 3.79in). It uses Electronic Fuel Injection (EFI), a compression ratio of 10.3:1, and runs on 89 octane recommended fuel with a maximum ethanol blend of 10%. Full throttle RPM range is 5,000–6,000 RPM, intake is 16-valve, and the engine carries a C.A.R.B. 3-Star emissions rating.
Yamaha F200 Tiller Electrical, Ignition, and Lubrication
Starting is electric, with an NGK-LFR6A-11 spark plug. The alternator delivers 50 amp output at wide-open throttle. Lubrication is a wet sump system using Yamalube 4M recommended engine oil, with an oil capacity of 4.5L / 4.3L with or without filter. Cooling is thermostatically controlled, and recommended fuel filtration is a Yamaha 10-micron fuel/water separating filter (external).
Yamaha F200 Tiller Steering and Mounting
This unit is fitted with a power-assisted tiller handle for steering, with a maximum steering angle of 30° from center in either direction. It’s built with a 25-inch shaft, a gear ratio of 1.86:1, and forward-neutral-reverse gear shift. Degree of tilt is 70°, degree of trim ranges from -4° through +16°, and mounting centers measure 26 inches. Exhaust routes through the propeller.
| Specification | Detail |
|---|---|
| Weight | 258 kg (568 lbs) |
| Full throttle RPM range | 5000–6000 RPM |
| Fuel induction system | EFI |
| Recommended engine oil | Yamalube 4M |
| Engine type | Inline 4 |
| Displacement | 2.8L |
| Bore x stroke | 96 x 96.2mm (3.78 x 3.79in) |
| Prop shaft horsepower | 200 HP at 5500 RPM |
| Alternator output at W.O.T. | 50 Amp |
| Compression ratio | 10.3:1 |
| Recommended fuel | Octane 89 |
| Recommended fuel filtration | Yamaha 10-micron fuel/water separating filter (external) |
| C.A.R.B. rating | 3-Star |
| Exhaust | Through propeller |
| Intake | 16-valve |
| Spark plug | NGK-LFR6A-11 |
| Starting system | Electric |
| Lubrication | Wet sump |
| Engine oil capacity | 4.5L / 4.3L (with/without filter) |
| Recommended cooling | Thermostatic control |
| Ethanol blend limit | 10% maximum |
| Gear ratio | 1.86:1 |
| Gear shift | Forward, Neutral, Reverse |
| Shaft length | 25″ |
| Degree of tilt | 70° |
| Degree of trim | -4° through +16° |
| Mounting centers | 26″ |
| Steering | Power-assisted tiller handle |
| Steering angle (maximum) | 30° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 1-Year Commercial |
Contact us today to secure this Yamaha F200 power-assisted tiller outboard, backed by Yamaha’s limited warranty.
